WINTEST2

Software for the connection of the instrument to a PC complete with DATA LOGGER and transfer of the measured values to an EXCEL file.

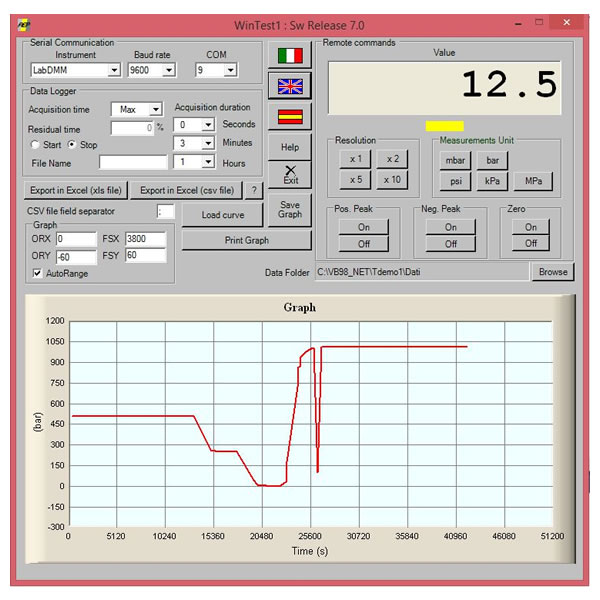

Real time graphical representation of the test

Connectable instruments: MP10, MP6A, MP2E, MP2000, TA5F and DMM

  • Categories: Software applications
  • Tags:

The software implements all the functionality allowed by the protocol to communicate with the selected instrument, including the display of the data and execution of remote commands.
The Data Logger function allows to storage into a file, in text and / or Microsoft Excel formats, the time and data values for a defined time and at a selected time interval.
The test curves are stored and can be later analyzed together allowing a simultaneous comparison of the test curves.

It is possible to zoom portions of the curve, save the chart as a bitmap file and print the curve.

ACCESSORIES

See instrumentation and connection cables

Download

Data sheet WinTEST2
