SG4

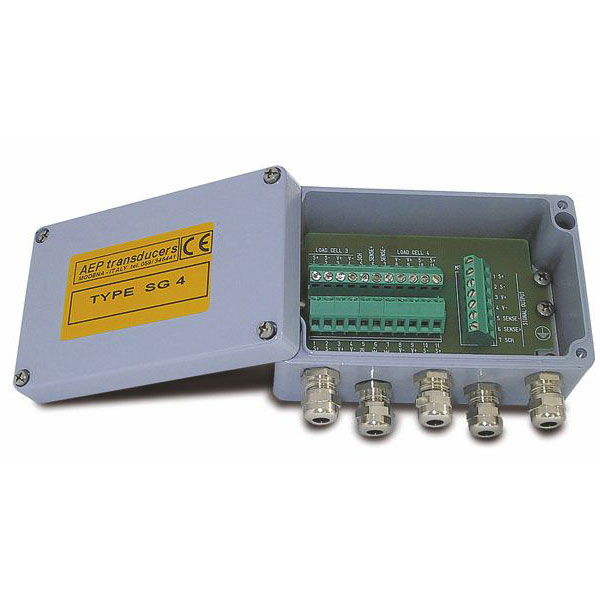

Junction box is used to make weighing, dosing and plants controlling easier, whenever connecting load cells in parallel is necessary, in order to have a single output signal which represents the sum of the signals of connected load cells.

Also available ATEX version

  • Categories: Instruments
  • Tags:

To connect load cells in parallel, five terminal boards with screw-type clamping have been arranged and they are used to perform electrical connections of both input and output cables.
The case made of die-cast pressurized aluminium and the fairleads supplied with, ensure a IP65 protection class (EN60529) against dust and water jets.

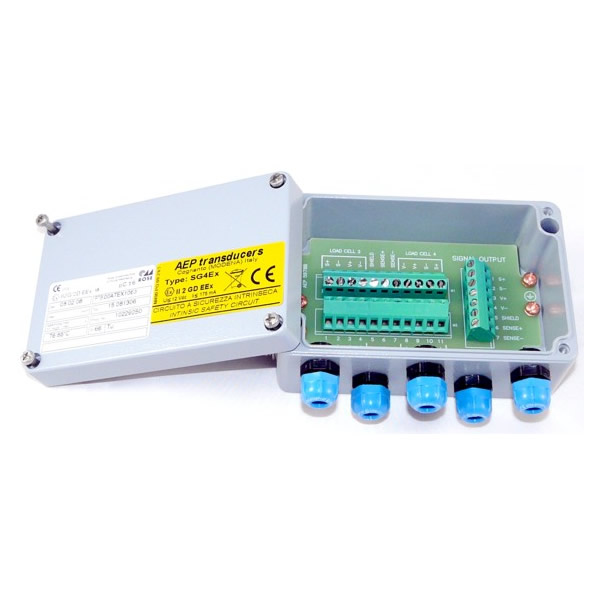

SG4 enables to perform connections in parallel of 4 load cells with 4 or 6 wires systems.

ACCESSORIES

Pack of No. 3 metal fairleads

Download

Data sheet SG4

Download 3D

SG4
