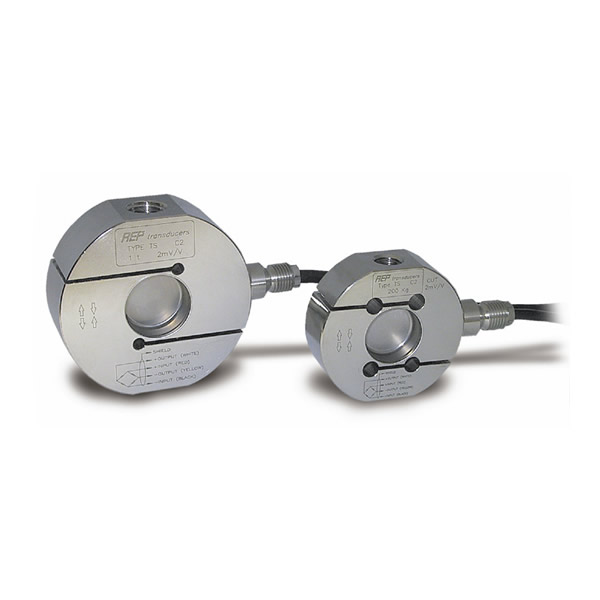

TS

Load cell for the measurement of static and dynamic loads in TENSION and COMPRESSION
Nominal Load from 10 kg to 10 tons
Class (OIML R60) C2, C3 and C4
Combined Error: 0,018%
Output: 2mV/V

  • Categories: Load cells
  • Tags:

Cella di carico adatta a lavorare in ambienti ostili.
Elevata resistenza meccanica.
Realizzate interamente in Acciaio inox.
Interamente saldata al LASER.
Grado di protezione IP67.
Stabilità a lungo termine.

A richiesta versione Omologata

A richiesta versione certificata ATEX (Zona 1 e 21) GAS e POLVERI

ACCESSORIES

Calibration Report
TENSION

Calibration Report
COMPRESSION

Joints to be used for COMPRESSION application

Loading head (TIC)

Spherical loading head (CTS)

Joints to be used for TENSION application.

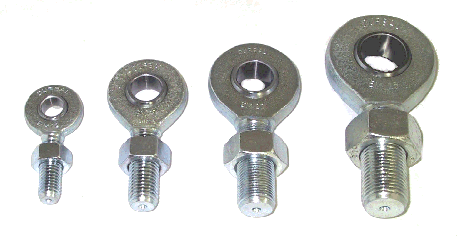

Knuckle joints (ACCEM)

SG4: Junction box to perform the parallel of multiple load cells.

TA4: Analog Transmitter to connect several load cells in parallel and remote transmitting the measuring signal voltage (± 10V) or current (4-20 mA) to the PLC or more advanced systems.

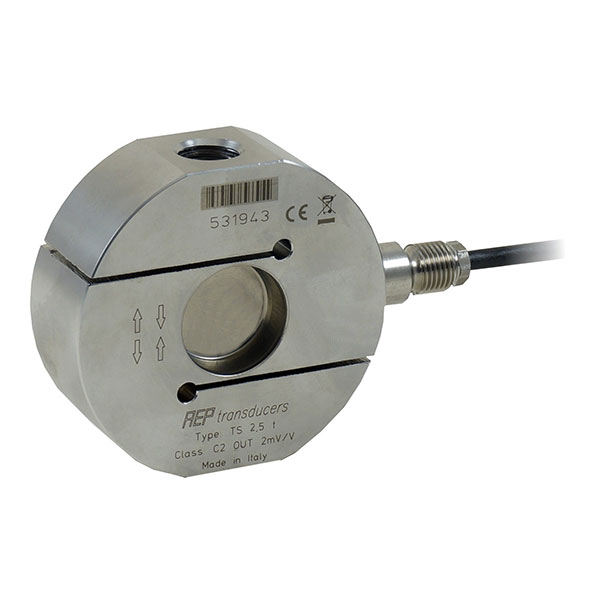

TS 2,5t

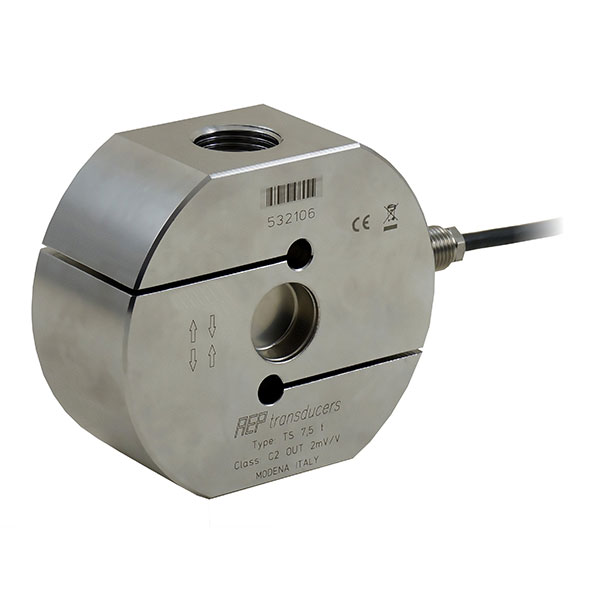

TS 7,5t

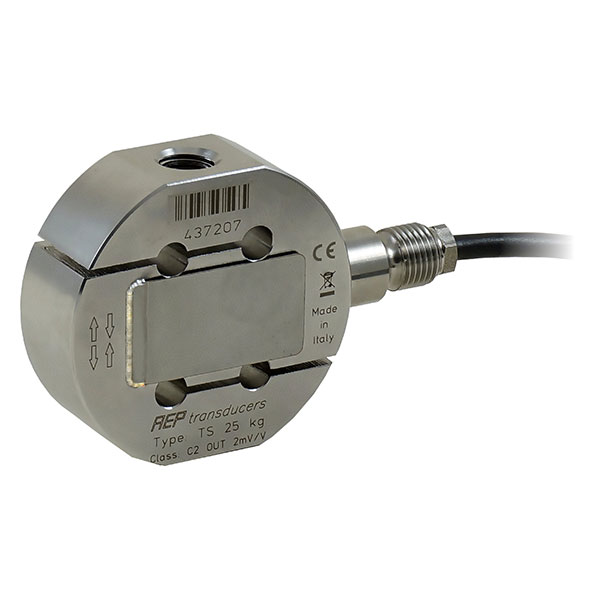

TS 25kg

Download

Data sheet TS
Certificate OIML R60
Certificate CE
Certificate ATEX
EAC Certificate

Download 3D

TS up to 50kg
TS_63 100kg to 500kg
TS_82 500kg to 2t
TS 100kg to 500kg with shackles
TS Ø82 up to 2t with M12
TS 2.5t
TS 5t and 7.5t
TS 10t
