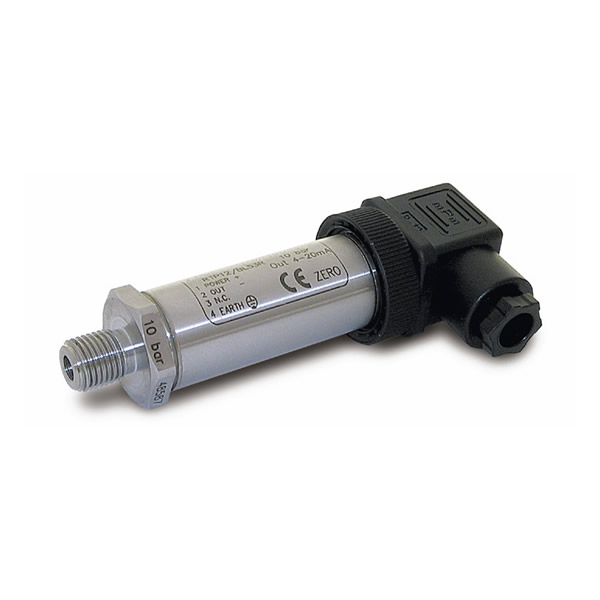

TP12

Pressure transmitters for RELATIVE, ABSOLUTE and VACUUM measures Nominal pressures from 100 mbar to 2000 bar AMPLIFIED outputs: 4-20mA, 10V or 5Volt Linearity and hysteresis 0,20%

  • Categories: Pressure transducers
  • Tags:

The pressure transmitters of this series are characterized by high reliability and long-term stability High mechanical strength, suitable for dynamic applications The sensitive part in contact with pressure, is entirely made of 17-4 PH stainless steel resistant to corrosion Protection class IP65 Process coupling 1/4″ GAS Male Connector standard DIN 43650 Internal adjustment of ZERO Power supply 12 to 24 Vdc

ACCESSORIES

Calibration Report

ACCREDIA certificate

Download

Data sheet TP12
CE certificate
EAC certificate
MOCA certificate

Download 3D

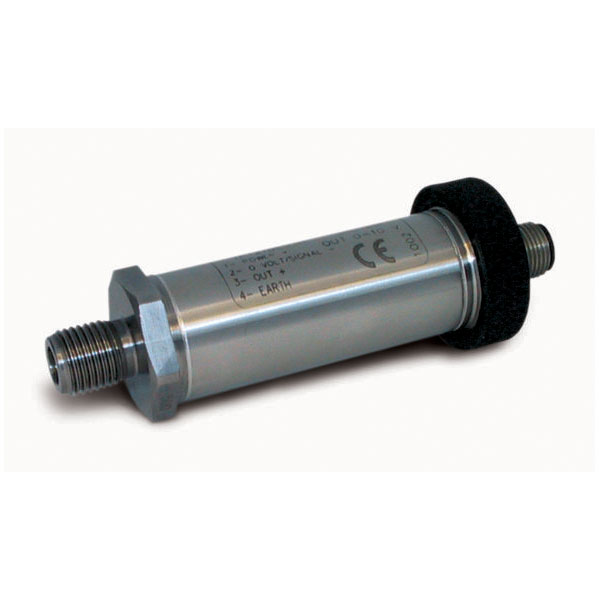

TP12-TP14-TP3 with M12 – G1_4
TP12-TP14-TP3 with M12 – G1_2
