Force transducers

Designing and production of force transducers according to the norms ISO 376 and ASTM E74.
Nominal loads from 50N up to 5MN.
Classes 00, 0.5 and 1
Applications in Compression and Tension.
On request is possible tu have the transducers complete of ACCREDIA Certificate.

Showing all 24 results

  • DNA2

    BUY NOW

    DNA2

    Compact Dynamometer for COMPRESSION and TENSION measurements
    Nominal Loads from 100kg to 5t
    Accuracy: 0.05% Class (ISO 376) 1

    Applications:
    Fall arrest lifelines verification.
    Verification of safety ropes.
    Verification of chains.
    Concrete dowel extraction tests.
    Verification of thrust force and trolley towing.
    Verification of force generated by presses or clamps.
    Verification of closing force of doors and gates.

    • Categories: Dynamometers Force transducers
    • Tags:
  • STAR-F

    BUY NOW

    STAR-F

    Professional ergonomic indicator extremely versatile and easy to be used for measurement of FORCE, WEIGHT, PRESSURE (gas), VACUUM, TORQUE and DISPLACEMENT. It is possible to integrate inside a FORCE sensor from 10 N to 5 kN or a pressure sensor (relative, absolute or differential up to max. 5bar) while from the external input it is possible to connect strain gauges sensors with output in mV/V such as: load cells, force transducers, pressure transducers, torque and displacement transducers. AUTOMATIC recognition of FORCE, WEIGHT, VACUUM, PRESSURE, TORQUE and DISPLACEMENT external transducers (max. 7) LCD graph DISPLAY with 3 levels of backlighting to adapt itself to any conditions of external brightness and with the possibility of rotating the  visualization of 180°. DIGITAL CALIBRATIONS protected by Password with full scale programming or with the “LINEARIZATION by points” of transducers, for every transducer it is possible to separately calibrate both the positive and the negative field. (Example: Tension and Compression) DATALOGGER allows to memorize measurements and to keep them in the internal memory even in case of instrument switching off. (max. 130.000 recordings)

    • Categories: Force transducers
    • Tags:
  • CLF

    BUY NOW

    CLF

    Force transducers for the measurement of static and dynamic loads in COMPRESSION.
    Nominal Load from 300 kN to 5 MN
    Class (ISO 376) 1
    Linearity and Hysteresis 0,05%
    Output: 2mV/V

    • Categories: Force transducers
    • Tags:
  • CLFLEX

    BUY NOW

    CLFLEX

    The transducer consists of a STRAIN CYLINDER and a FORCE transducer used for the calibration and auto alignment of the joints as well as for the force centering of compression test machines on hardened concrete.

    Executed according to the norm references: UNI EN 12390-4 and DIN 51302-2.

    Nominal Load 3 MN
    Class (ISO 376) 1
    Linearity and Hysteresis 0,05%
    Output: 2mV/V

    • Categories: Force transducers
    • Tags:
  • CLSTM

    BUY NOW

    CLSTM

    Force transducers for the measurement of static and dynamic loads in COMPRESSION.

    Nominal Load from 300 kN to 5 MN
    Class (ISO 376) 1 and 0.5
    Linearity and Hysteresis 0,05%
    Output: 2mV/V

    • Categories: Force transducers
    • Tags:
  • CLB

    BUY NOW

    CLB

    Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION.
    Nominal Load from 30 kN to 600 kN
    Class (ISO 376) 00, 0.5 and 1
    Linearity and Hysteresis 0,03%
    Output: 2mV/V

    • Categories: Force transducers
    • Tags:
  • KAL

    BUY NOW

    KAL

    Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION.
    Nominal Load from 10 kN to 2 MN
    Class (ISO 376) 00, 0.5 and 1
    Linearity and Hysteresis 0,03%
    Output: 2mV/V

    • Categories: Force transducers
    • Tags:
  • MICROKAL

    BUY NOW

    MICROKAL

    Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION.
    Nominal Load from 50 N to 5 kN
    Class (ISO 376) 00, 0.5 and 1
    Linearity and Hysteresis 0,03%
    Output: 2mV/V

    • Categories: Force transducers
    • Tags:
  • C8S

    BUY NOW

    C8S

    Force transducers for the measurement of static and dynamic loads in COMPRESSION.
    Nominal Load from 5 kN to 2 MN
    Class (ISO 376) 0.5 and 1
    Linearity and Hysteresis 0,03%
    Output: 2mV/V

    On request

    • Categories: Force transducers
    • Tags:
  • TC4

    BUY NOW

    TC4

    Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION
    Nominal Load from 2.5 kN to 5 MN
    Class (ISO 376) 1
    Linearity and Hysteresis 0,05%
    Output: 2mV/V
    on request

    • Categories: Force transducers
    • Tags:
  • TC4-AMP

    BUY NOW

    TC4-AMP

    Force transducers for the measurement of static loads in COMPRESSION and TENSION
    Nominal Load from 5 kN to 5 MN
    Linearity and Hysteresis 0,05%

    Standar output

    • Categories: Force transducers
    • Tags:
  • DC-TC4

    BUY NOW

    DC-TC4

    Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION.
    Nominal Load from 10 kN to 1 MN
    Linearity and Hysteresis 0.05%

    INTEGRATED DIGITAL INDICATOR Functions ZERO, PEAK, Digital FILTER Programmable.

    • Categories: Force transducers
    • Tags:
  • DCV-TC4

    BUY NOW

    DCV-TC4

    Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION
    Nominal Load from 10 kN to 1 MN
    Linearity and Hysteresis 0.05%

    INTEGRATED DIGITAL INDICATOR
    ZERO adjustment

    • Categories: Force transducers
    • Tags:
  • MICROTC4

    BUY NOW

    MICROTC4

    Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION
    Nominal Load from 1 kN to 10 kN
    Linearity and Hysteresis 0,05%
    Output: 2mV/V

    SMALL SIZE

    • Categories: Force transducers
    • Tags:
  • MICROTC4-AMP

    BUY NOW

    MICROTC4-AMP

    Force transducers for the measurement of static loads in COMPRESSION and TENSION
    Nominal Load from 1 kN to 10 kN
    Linearity and Hysteresis 0,05%

    SMALL SIZE

    Standar output

    • Categories: Force transducers
    • Tags:
  • MICROTC5

    BUY NOW

    MICROTC5

    Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION
    Nominal Load from 1 kN to 10 kN
    Linearity and Hysteresis 0,05%
    Output: 2mV/V

    SMALL SIZE

    • Categories: Force transducers
    • Tags:
  • MICROTC5-AMP

    BUY NOW

    MICROTC5-AMP

    Force transducers for the measurement of static loads in COMPRESSION and TENSION
    Nominal Load from 1 kN to 10 kN
    Linearity and Hysteresis 0,05%

    SMALL SIZE

    Standar output

    • Categories: Force transducers
    • Tags:
  • TC8

    BUY NOW

    TC8

    Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION
    Nominal Load from 10 kN to 1 MN
    Class (ISO 376) 0.5 and 1
    Linearity and Hysteresis 0,03%
    Output: 2mV/V

    On request

    • Categories: Force transducers
    • Tags:
  • C10

    BUY NOW

    C10

    Force transducers for the measurement of static and dynamic loads in COMPRESSION an TENSION
    Nominal Load from 10 kN to 1 MN
    Linearity and Hysteresis 0,10% and 0,20%
    Standard Output 2mV/V

    • Categories: Force transducers
    • Tags:
  • C10-AMP

    BUY NOW

    C10-AMP

    Force transducers for the measurement of static and dynamic loads in COMPRESSION an TENSION
    Nominal Load from 10 kN to 1 MN
    Linearity and Hysteresis 0,10% and 0,20%
    Standard Output

    • Categories: Force transducers
    • Tags:
  • CM

    BUY NOW

    CM

    Force transducers for the measurement of static and dynamic loads in COMPRESSION.
    Nominal Load from 50 kg to 5 tons
    Linearity and Hysteresis 0,20%
    SMALL SIZE
    Standard Output 2mV/V

    • Categories: Force transducers
    • Tags:
  • CM-AMP

    BUY NOW

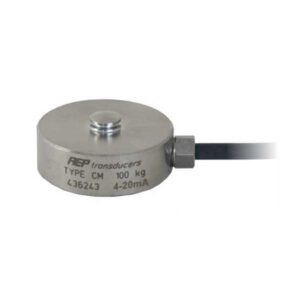

    CM-AMP

    Transductor de fuerza de COMPRESIÓN para la medida de cargas estáticas y dinámicas
    Carga nominal de 50kg a 5t
    Linealidad e histeresis 0.20%
    DIMENSIONES REDUCIDAS
    Sensibilidad nominal 2mV/V

    • Categories: Force transducers
    • Tags:
  • TCETM

    BUY NOW

    TCETM

    Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION
    Nominal Load from 5 kN to 100 kN
    Class (ISO 376) 00, 0.5 and 1
    Linearity and Hysteresis 0,03%
    Output: 2mV/V

    On request

    • Categories: Force transducers
    • Tags:
  • TSTM

    BUY NOW

    TSTM

    Force transducers for the measurement of static and dynamic loads in COMPRESSION and TENSION
    Nominal Load from 500 N to 5 kN
    Class (ISO 376) 00, 0.5 and 1
    Linearity and Hysteresis 0,025%
    Output: 2mV/V

    On request

    • Categories: Force transducers
    • Tags:
