RT2

ROTATING torque transducers for the measurement in clockwise and anticlockwise direction CYLINDRICAL or SQUARE coupling  Nominal torque from 0.5 N•m to 5000 N•m Linearity and Hysteresis 0,20% Nominal speed of rotation 4000 rpm Contact transmission Versions with ENCODER integrated reading ANGLE and SPEED RT2 standard outut ±2mV/V RT2A standard output ±10Volt

  • Categories: Torque transducers
  • Tags:

Suitable for testing machines, test benches and laboratory applications in general Transmission to contacts. High mechanical resistance Sensor made of stainless steel. Housing made of aluminum. Degree of protection IP40 Long term stability.

ACCESSORIES

Calibration Report CLOCKWISE Calibration Report ANTICLOCKWISE

ACCREDIA Certificate CLOCKWISE ACCREDIA certificate ANTICLOCKWISE

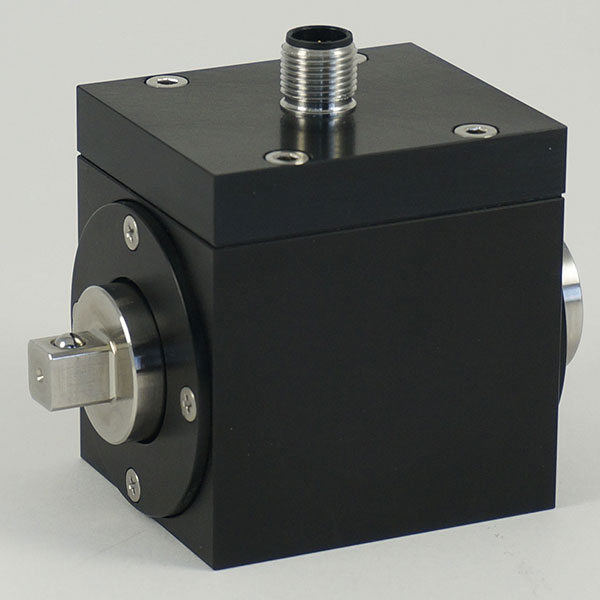

RT2-Q1

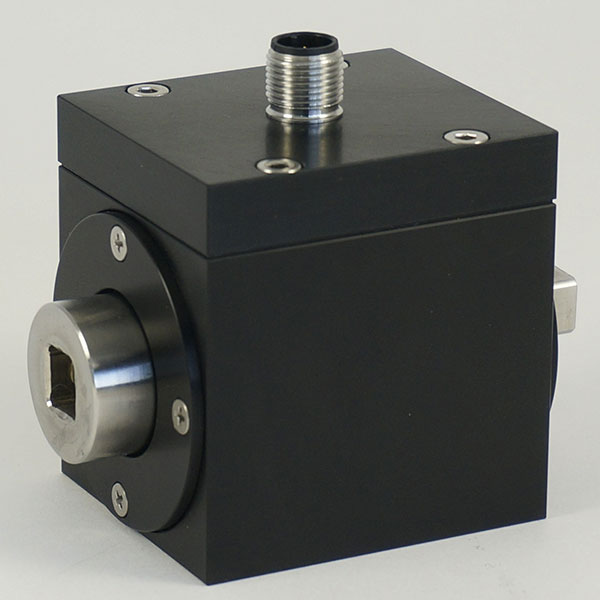

RT2-Q2

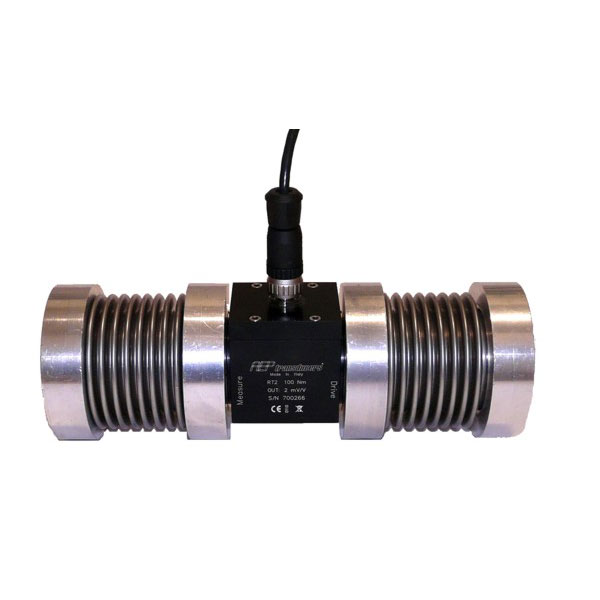

RT2 + couplings

Download

Data sheet RT2
Certificate CE
EAC Certificate

Download 3D

RT2-RT2A 100-250-500 Nm
RT2-RT2A 1000-3000-5000 Nm with cable
RT2-RT2A 1000-3000-5000 Nm
RT2-RT2A up to 50 Nm
