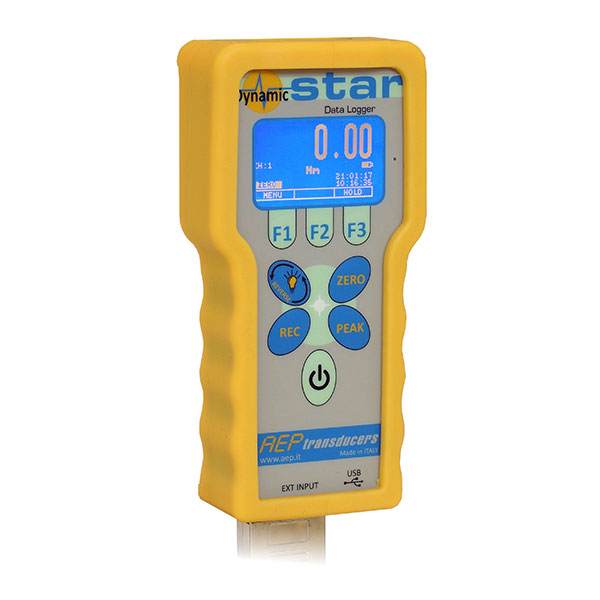

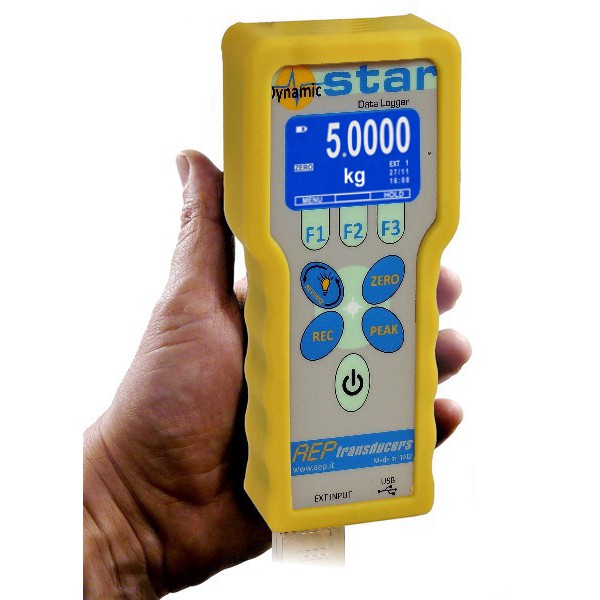

DYNAMICSTAR

Professional ergonomic handheld indicator extremely versatile and simple to use for measures of FORCE, WEIGHT, PRESSURE, TORQUE, ANGLE, SPEED and POWER.

Particularly indicated for both applications, STATIC where he works with a high resolution (± 200.000 divisions at 2mV / V) and DYNAMIC applications thanks to a programmable acquisition rate up to 19.2 kHz.

Internal data logger that allows to internally record the evidence, even at the maximum acquisition speed and then transfer them to a PC with WinStar software to print analysis, archiving, etc. …

The main input (CH1) with automatic recognition of 7 external sensors.

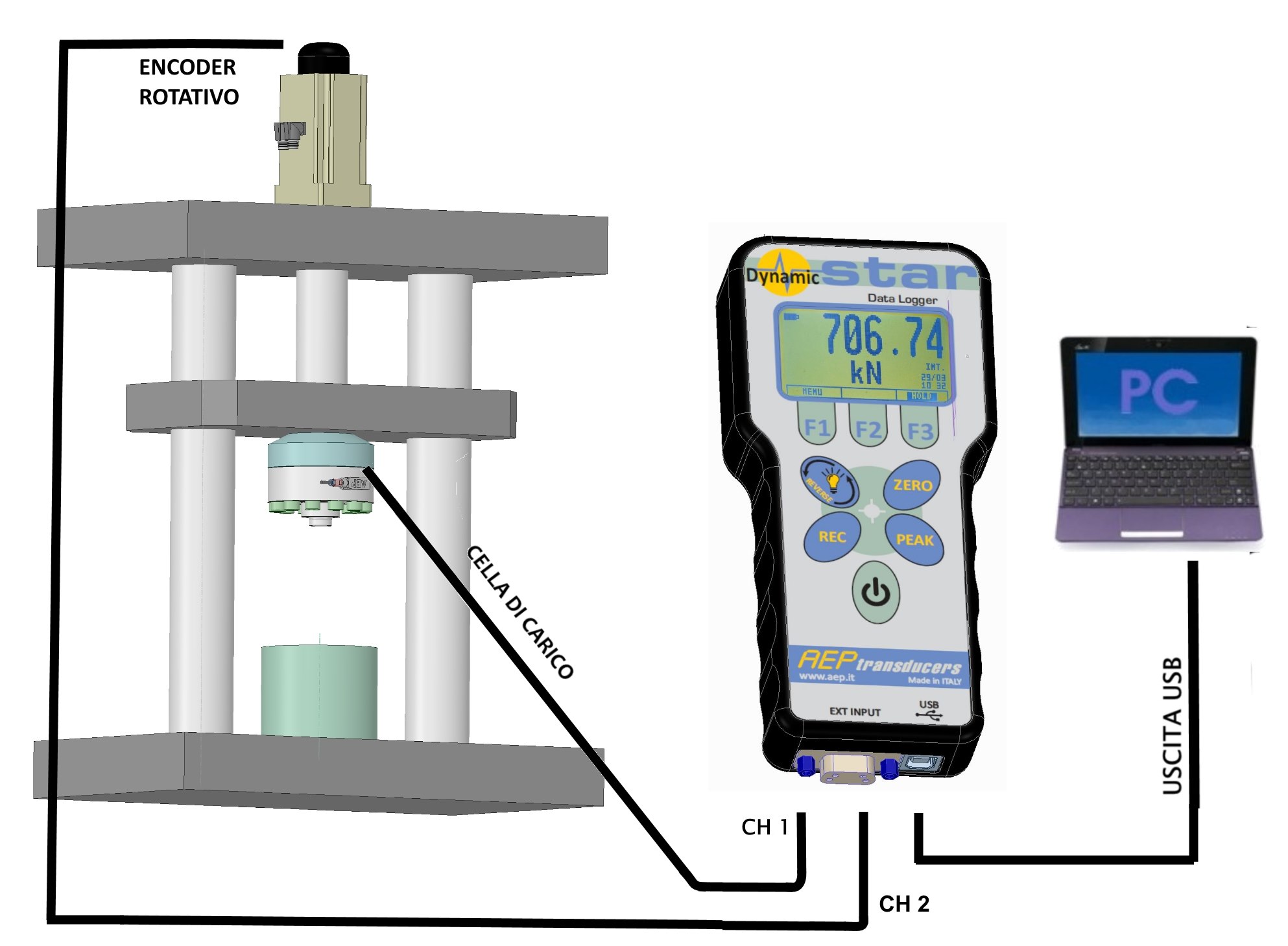

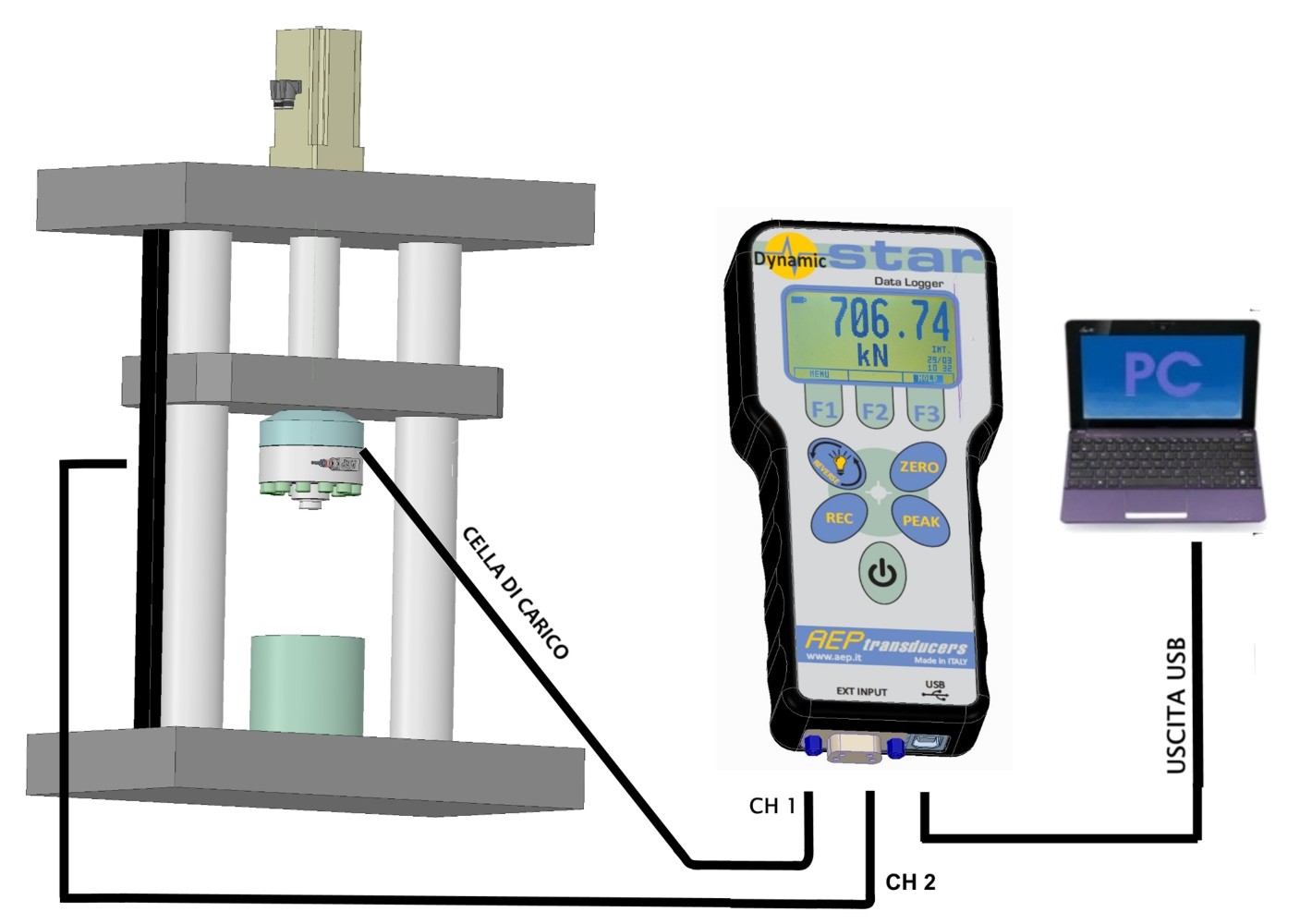

Versions with second input (CH2) for ENCODER suitable for measuring ANGLE, SPEED and POWER.

  • Categories: Instruments
  • Tags:

The display of measurements happens through a big graphic backlighted display.
DynamicStar is equipped with USB interface that allows both the communication in real-time with a PC and the recharge of the internal long-lasting and great reliability battery (Li-Ion).
In addition to the direct reading of the measurements, it is possible to detect PEAKS, block the measurement on the display thanks to the HOLD function and through the internal DATA LOGGER.
Metal case.
Li-Ion internal battery which ensures a 8 hours AUTONOMY.
Protection class IP40.
Functions ZERO, FILTER, PEAK, AUTO POWER OFF, DATA LOGGER, REC …..
USB output.
Included: travelling case made of ABS and feeder with USB cable.

ACCESSORIES

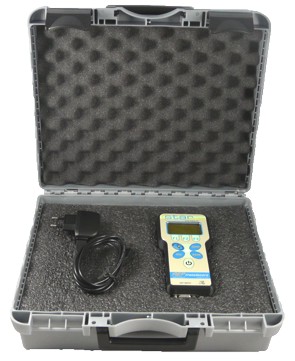

Travelling case

feeder with USB cable

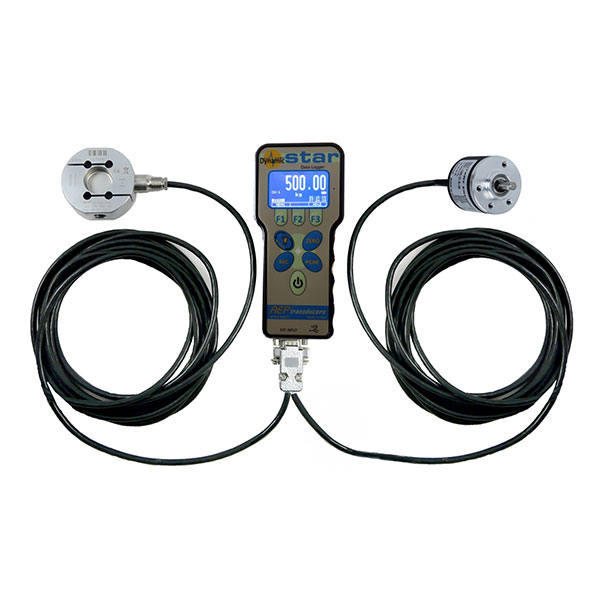

Dynamicstar forza + Encoder

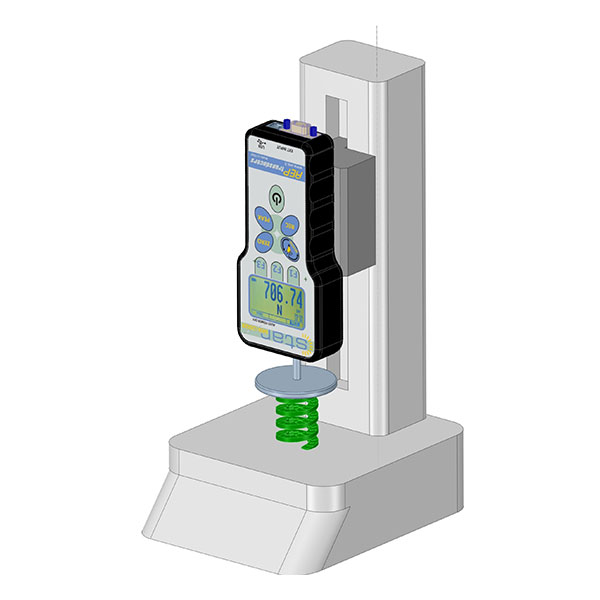

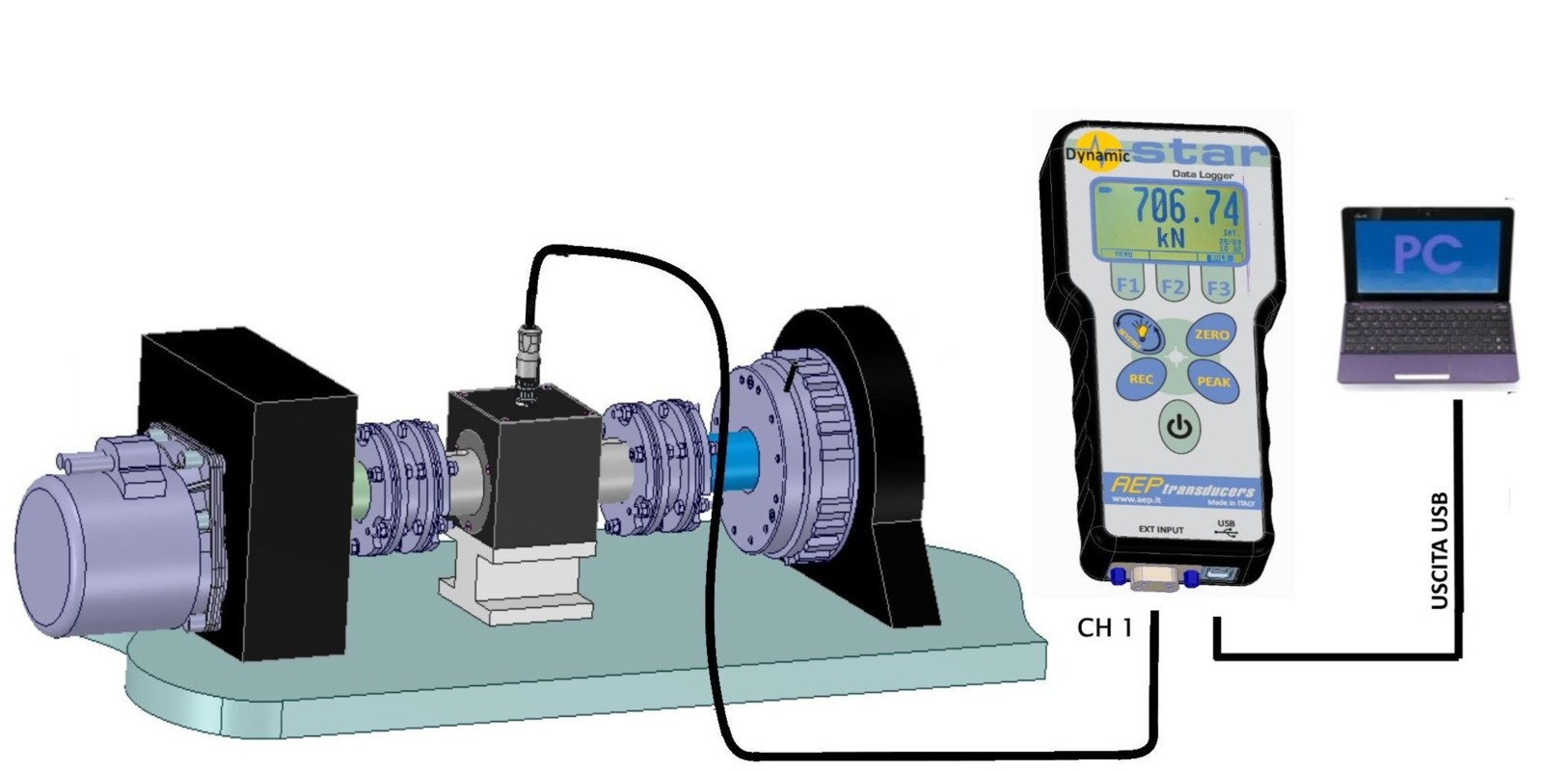

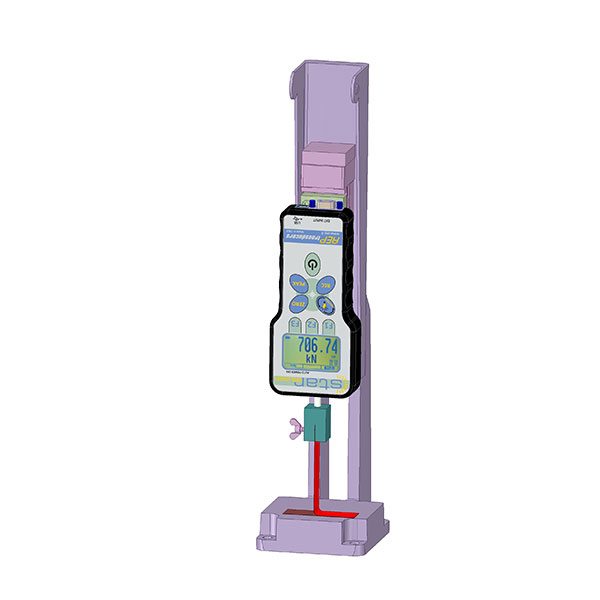

Esempi Applicativi

WinSTAR:
Software for monitoring analyzing and recording the run of tests which can involve up to 1 instrument.

Download

Data sheet DynamicSTAR
Data sheet WinSTAR
USB Driver DSTAR
