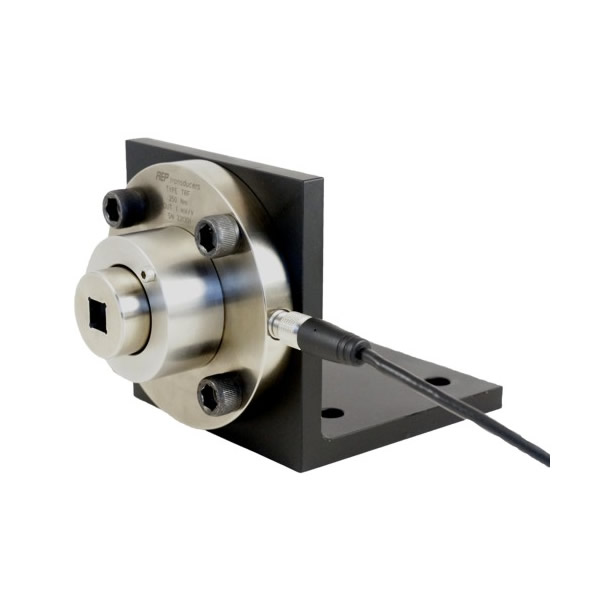

TRF

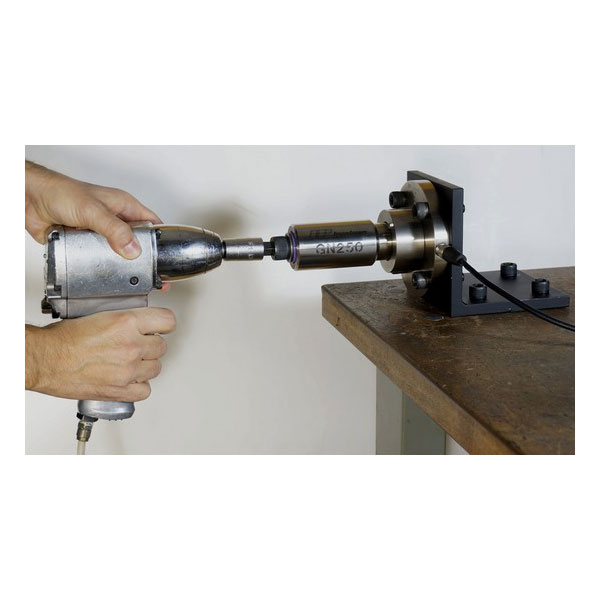

System for the calibration of screwdrivers

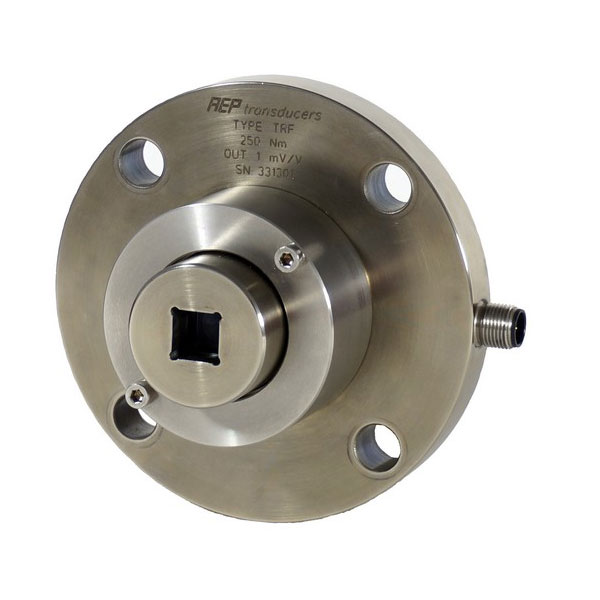

STATIC torque transducer for clockwise and anticlockwise measurements
Attack female FRAMEWORK
Nominal loads from 100 Nm to 1000 Nm
Linearity and Hysteresis 0.20% and 0.10%
Standard output ± 1mV / V

CHEAP

  • Categories: Torque transducers
  • Tags:

Used in the industrial field, in the laboratory and as transfer samples to evaluate the uncertainty of direct-weight torque transducers or for comparison with the various national reference institutes.
High mechanical resistance.
Made entirely of stainless steel.
Entirely welded to the LASER.
Degree of protection IP40.
Long-term stability.

ACCESSORIES

Clockwise calibration report

Anticlockwise calibration report

Clockwise ACCREDIA certificate

Anticlockwise ACCREDIA certificate

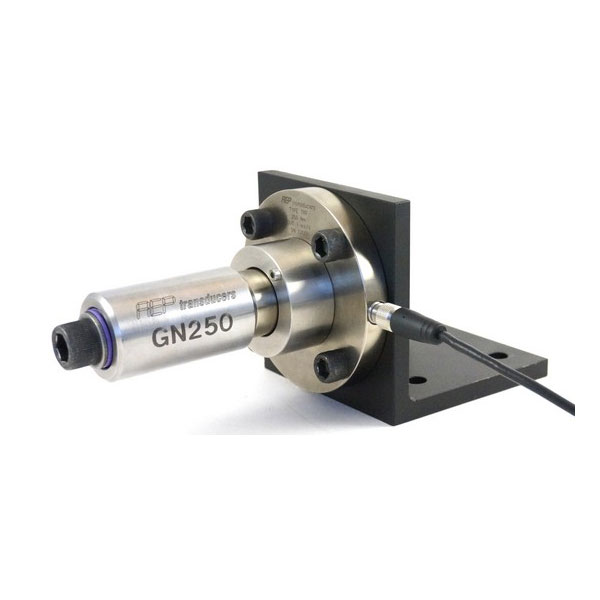

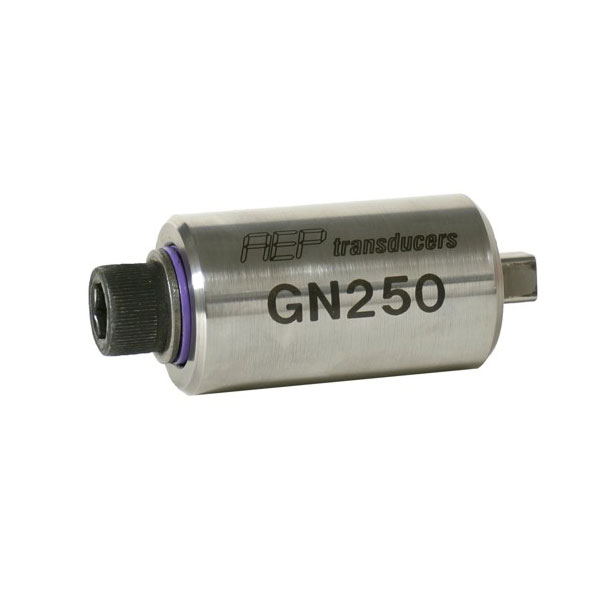

GN250

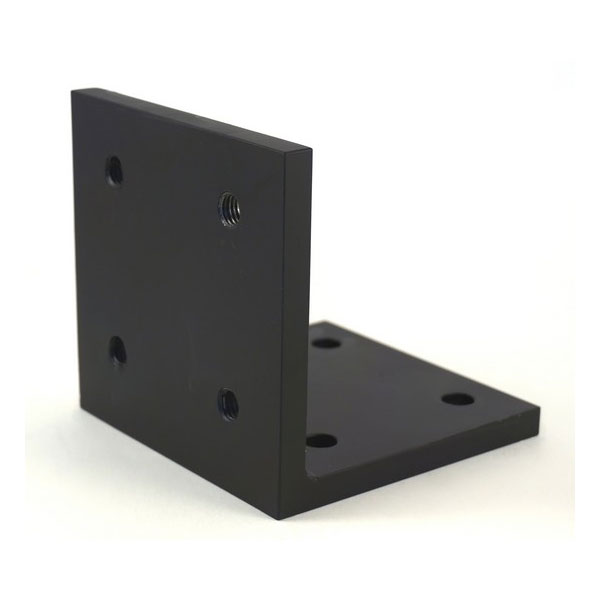

Bracket

Download

Data sheet TRF
CE certified
