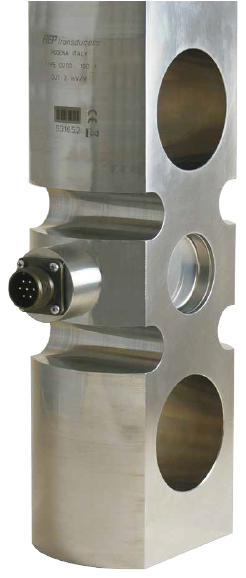

D200

Load cell for the measurement of static and dynamic loads in TENSION
Nominal Load from 20 tons to 100 tons
Linearity: 0,10%
Output: 2mV/V
on request

  • Categories: Load cells
  • Tags:

Load cell suitable to work in hostile environments.
High mechanical resistance
Completely made of stainless steel
Completely LASER welded
Degree of protection IP67
Long term stability

ACCESSORIES

Calibration Report
TENSION

Galvanized shackles for lifting

SG4: Junction box to perform the parallel of multiple load cells.

TA4: Analog Transmitter to connect several load cells in parallel and remote transmitting the measuring signal voltage (± 10V) or current (4-20 mA) to the PLC or more advanced systems.

Wireless

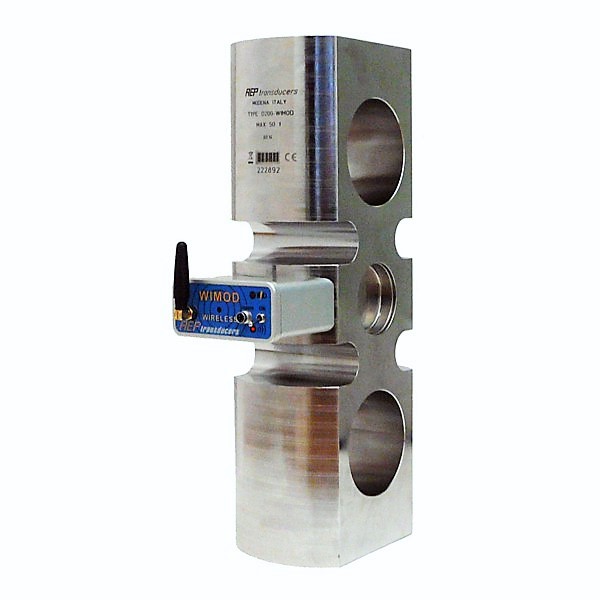

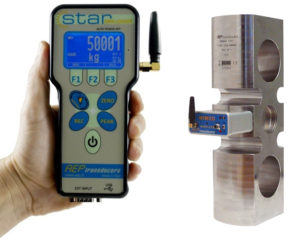

D200-WIMOD
Wireless transmitter mounted on board of load cell

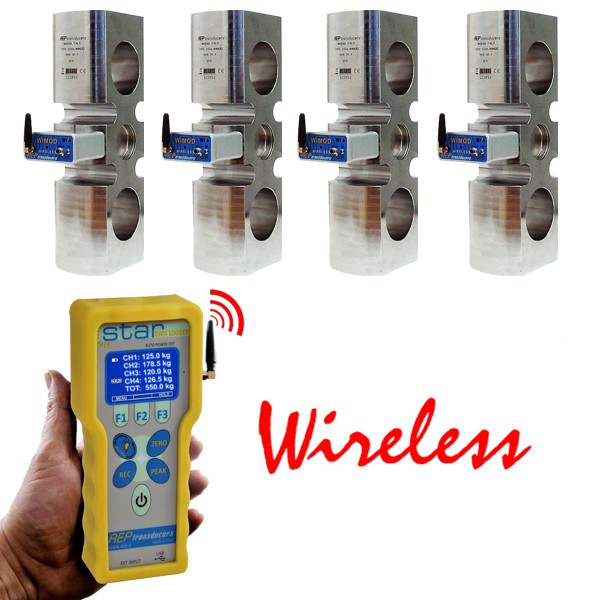

WISTAR
Handheld receiver

Download

Data sheet D200
Certificate CE

Download 3D

D200 20t and 30t

D200 50t to 100t
