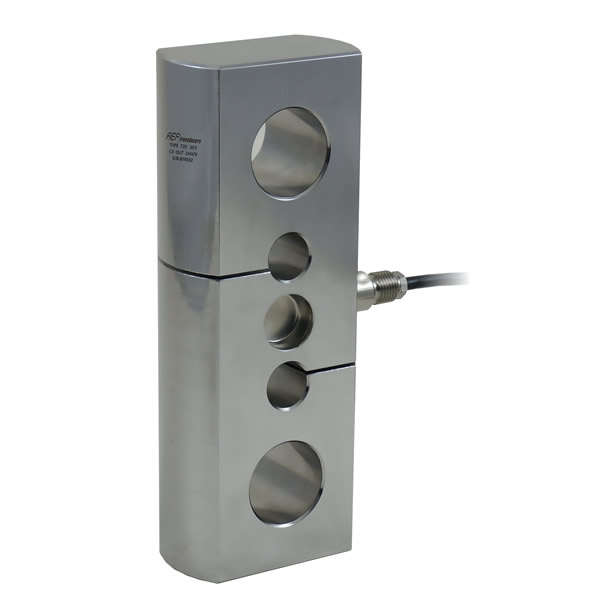

T20

Load cell for the measurement of static and dynamic loads in TENSION
Nominal Load from 5 tons to 20 tons
Class (OIML R60) C2 and C3
Combined Error: 0,019%
Output: 2mV/V
on request

  • Categories: Load cells
  • Tags:

Load cell suitable to work in hostile environments
High mechanical resistance
Completely made of stainless steel
Completely LASER welded
Degree of protection IP68
Long term stability

On request ATEX certificate (Zones 1 and 21) GAS and DUST

ACCESSORIES

Calibration Report
TENSION

Galvanized shackles for lifting

SG4: Junction box to perform the parallel of multiple load cells

TA4: Analog Transmitter to connect several load cells in parallel and remote transmitting the measuring signal voltage (± 10V) or current (4-20 mA) to the PLC or more advanced systems

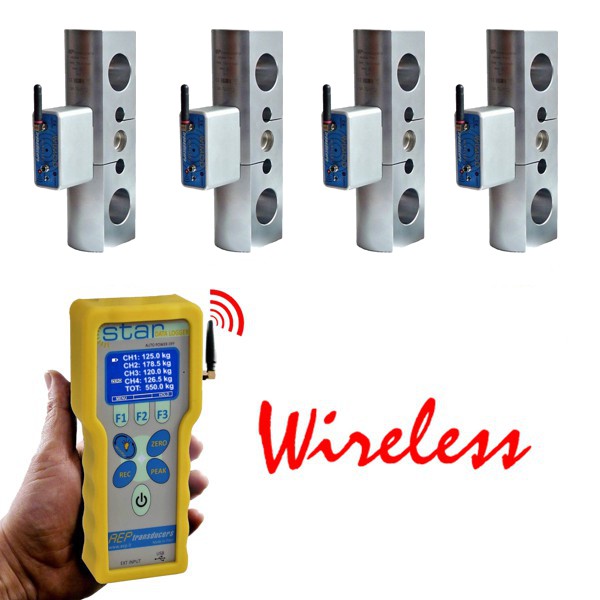

Wireless

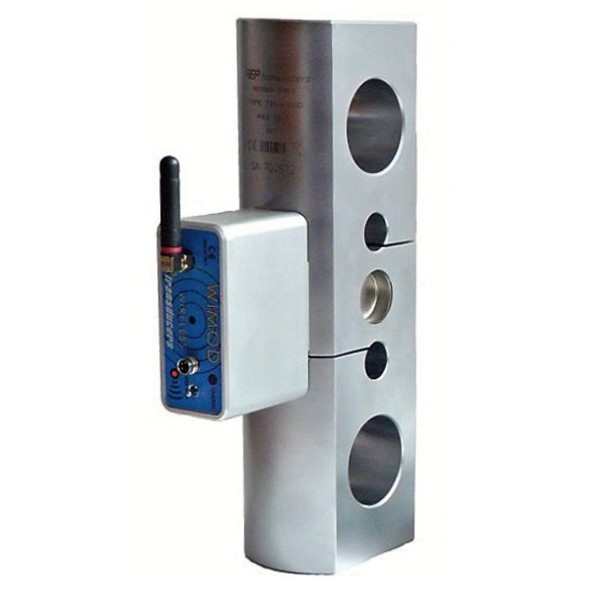

T20-WIMOD
Wireless transmitter mounted on board of load cell

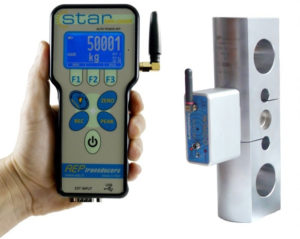

WISTAR
Handheld receiver

Download

Data sheet T20
Certificate CE
Certificate ATEX
EAC Certificate

Download 3D

T20 up to 10t

T20 15t and 20t with shackles
