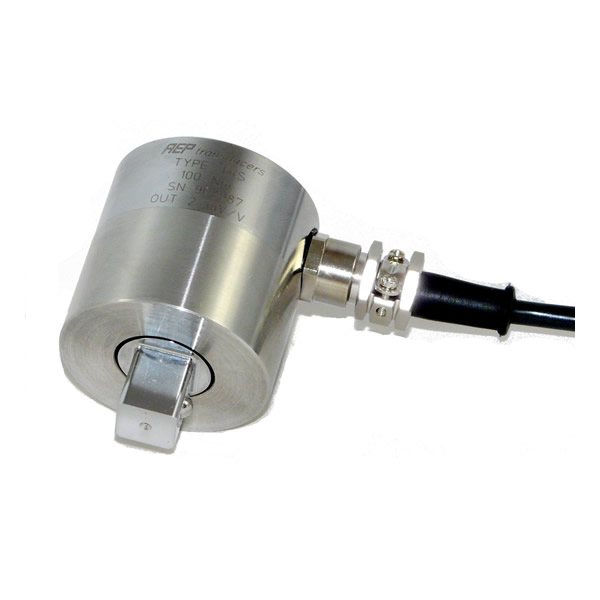

TRS

STATRIC torque transducers for the measurement in clockwise and anticlockwise direction SQUARE drive process coupling (UNI ISO 1174-1) Nominal torque from 0,5 N•m to 1000 N•m Linearity and Hysteresis 0,2% or 0.1% Output: 2mV/V LOW PRICE and EASY APPLICATIONS

  • Categories: Torque transducers
  • Tags:

High mechanical resistance
Completely made of stainless steel
Completely LASER welded
Degree of protection IP40
Long term stability
Quick coupling

ACCESSORIES

Calibration Report CLOCKWISE Calibration Report ANTICLOCKWISE

ACCREDIA Certificate CLOCKWISE ACCREDIA certificate ANTICLOCKWISE

Download

Data sheet TRS
Certificate CE
EAC Certificate

Download 3D

TRS_1_2
TRS_1_4
TRS_3_4
TRS_3_8
