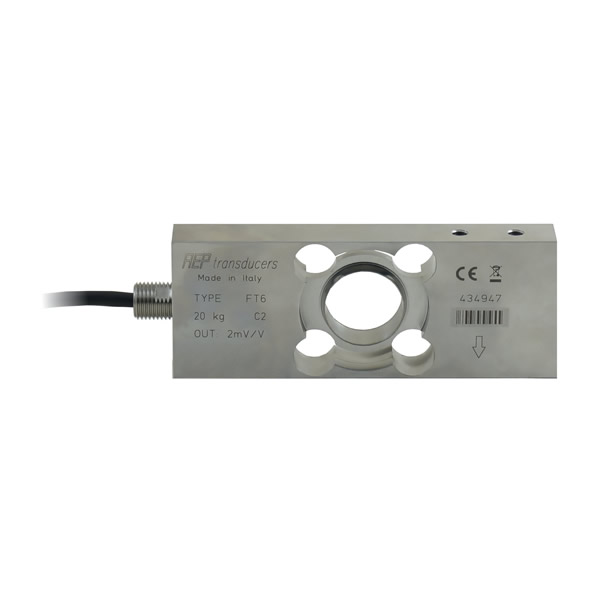

FT6

OFF CENTER load cell for the measurement of static and dynamic loads
Nominal Load from 5 kg to 100 kg
Class (OIML R60) C2
Combined Error: 0,028%
Output: 2mV/V

  • Categories: Load cells
  • Tags:

Completely made of STAINLESS STEEL
Platform size: 400 X 400 mm
Load cell suitable to work in hostile environments
High mechanical resistance
Completely LASER welded
Degree of protection IP68
Long term stability

ACCESSORIES

Calibration Report

SG4: Junction box to perform the parallel of multiple load cells

TA4: Analog Transmitter to connect several load cells in parallel and remote transmitting the measuring signal voltage (± 10V) or current (4-20 mA) to the PLC or more advanced systems

Download

Data sheet FT6
Certificate CE

Download 3D

FT6 up to 30kg

FT6 50kg and 100kg
